Standard Profiles

Round tubes	Round bars	Square tubes	Square tubes (rounded)	Square bars
U-profiles	U-profiles (rounded)	L-profiles	L-profiles with varying lengths	L-profiles with varying lengths (rounded)
T-profiles	T-profiles (rounded)	Plates	Plates (rounded)	Plates (fully rounded)

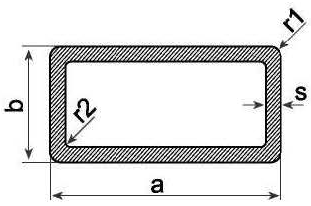

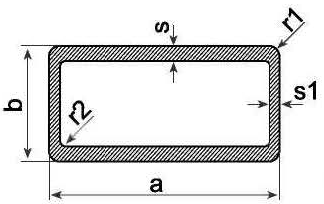

Z-profiles	Z-profiles (rounded)	Rectangular tubes	Rectangular tubes (rounded)	Rectangular tubes with varying thicknesses (rounded)
H-profiles	C-profiles	Flat tubes	Polygonal Bars	Many more standard and custom profiles are available. Contact Us for more information.

Round tubes

d (mm)	s (mm)	Weight (kg/m)
8	1	0.060
8.5	2.75	0.135
10	1	0.077
10	1.2	0.090
10	2	0.136
12	2	0.170
12	1	0.094
12	1.5	0.134
12.1	2	0.172
13	1	0.102
13	1.5	0.147
13	2	0.187
13.8	3.4	0.301
14	1	0.111
14	2	0.204
14.9	3.95	0.368
15	1.5	0.172
15.7	5.85	0.491
16	1	0.128
16	1.5	0.185
16	1.2	0.151
16	1.5	0.185
16	1.9	0.228
16	2.5	0.287
16	5	0.468
16	2.5	0.287
16	3	0.332
16	4.5	0.440
16	5	0.468
17	1	0.136
17	2.5	0.309
18	1	0.145
18	1.5	0.211
18	2	0.272
18.7	6.1	0.654
19	1	0.153
19	1.2	0.182
19.6	1.25	0.195
19.7	2.7	0.391
19.8	7.4	0.781
20	1	0.162
20	2	0.306
20	2.5	0.372
20	3	0.434
20	4	0.545
20	6	0.715
20	6.5	0.747
20.7	1.15	0.191
21.8	1.2	0.211
22	0.9	0.162
22	1.5	0.261
22	2	0.341
22	8.5	0.977
22	6	0.817
22.3	1.4	0.249
24	3.5	0.611
24	3.75	0.647
24	5	0.809
24	6	0.920
24	8.5	1.121
24.8	3.8	0.679
25	2	0.391
25	2.5	0.479
25	2.2	0.427
25	1.4	0.281
25	1.5	0.300
25	3	0.562
25	3.5	0.641
25	3.25	0.602
25	5.75	0.942
25	9.35	1.246
27	1.5	0.326
27	3	0.613
28	1.5	0.338
28	1.55	0.352
28	2	0.443
28	1	0.23
28	5	0.979
28	6.5	1,190
28	3	0.639
28	5	0.979
28	4.75	0.940
29	2.5	0.564
29.7	6.5	1.284
29.8	2.9	0.664
30	1	0.247
30	1.5	0.364
30	2	0.477
30	2.5	0.585
30	3	0.689
30	3.75	0.838
30	5	1.064
30	6	1.226
30	8	1.499
30	6.75	1,336
30	7.5	1,437
30	11	1.778
32	2.5	0.628
32	11.75	2.025
32.2	1.1	0.291
34	10	2.043
35	1	0.290
35	1.5	0.428
35	1.5	0.428
35	2	0.532
35	2.5	0.692
35	2.5	0.692
35	3	0.817
35	5	1.277
35	8.5	1.918
35	13.5	2.471
36	14.75	2.660
38	2	0.613
38.1	3.25	0.964
38.5	6.25	1.716
39.85	1.675	0.544
40	1	0.332
40	2	0.647
40	2.5	0.798
40	3	0.945
40	5	1.490
40	8	2.180
40	8.5	2.280
40	11.75	2.826
40.2	15.1	3.227
40.2	16.1	3.303
42	6	1.839
43.9	1.05	0.383
44	6	1.940
44	13.5	3.506
44.8	12.15	3.377
45	1.5	0.556
45	5	1.703
45	9	2.759
45	10	2.979
45.4	1.8	0.668
46	9.5	2.952
46	17.5	4.246
46.5	1.575	0.604
47	1.15	0.449
48	2	0.783
48	3	1.149
48	4	1.498
48.3	5	1.843
50	1.8	0.739
50	1.5	0.620
50	1.8	0.739
50	2	0.817
50	2.2	0.895
50	2.5	1,011
50	3	1.200
50	3	1.200
50	4	1.567
50	5	1.916
50	10	3.405
50	10.5	3,531
50.4	4.7	1,829
51	1	0.426
51	3	1.226
51	11	3.746
51.5	10.75	3.730
53	18	5.363
83	6.1	2,436
53.5	1.5	0.664
54.3	1.9	0.848
55	1	0.460
55	6	2.503
55	7.35	2,982
55.3	2.4	1.081
57	12	4.598
60	11	4,589
60	1	0.502
60	1.5	0.747
60	2	0.988
60	2.5	1.223
60	3	1.456
60	3.5	1.683
60	4	1.907
60	6	2.759
60	19.75	6.768
64.2	2.1	1.110
65	2.5	1.330
65	5	2,554
67	22.5	8.524
70	1	0.588
70	1	0.588
70	1	0.588
70	2	1.158
70	3	1.711
70	5	2.767
70	6	3.269
70	13	6,309
70	14.9	6.990
70	17.5	7.821
72	16	7.628
75	2	1.243
75	2.5	1.543
75	5	2.980
76	3	1.864
76	5.5	3.301
76	12.5	6.758
77	15	7.918
80	1.5	1.002
80	1.8	1.198
80	2	1,328
80	5	3.193
80	14.85	8.237
81	2.5	1.671
81	15	8.429
82	1.5	1.028
82	12	7.151
82	15	8.556
83	6.1	2.436
84	16	9.262
85	3	2.094
85	5	3.405
87	10.5	7.928
87	17.5	10.355
88	1.3	0.960
90	5	3.618
98	1	0.826
100	2	1.669
100	4	3.269
100	5	4.044
101	2	1.686
101.6	3.2	2.681
102.5	1.75	1.501
106	3	2.631
108	2.5	2.246
110	1.5	1.386
110	5	4.470
114.5	4.75	4.438
120	2.5	2,501
130	40	30.649
134	2	2.248
134	14.5	14.752
150	5	6.173

---

Round bars

d (mm)	Weight (kg/m)
5	0.053
6	0.077
7.65	0.125
8	0.136
9	0.172
9.7	0.200
10	0.212
12	0.306
13	0.360
13.6	0.394
14	0.417
14.1	0.423
15	0.479
16	0.545
18	0.690
19	0.768
20	0.851
22	1.029
24	1.225
25	1.330
26	1.438
27	1.551
28	1.669
30	1.915
32	2.180
33	2.318
34.5	2.533
35	2.607
37	2.912
38	3.074
40	3.406
41	3.578
42	3.755
45	4.308
50	5.321
50.3	5.385
55	6.439
56	6.675
60	7.662
61	7.920
62	8.182
64.8	8.937
65	8.993
66	9.271
71	10.729
75	11.972
76.5	12.456
80	13.622
85	15.377
86	15.742
88	16.482
90	17.240
100	21.284
112	26.699
123	32.201
125	33.257

---

Square tubes

a (mm)	s (mm)	Weight (kg/m)
14	1.2	0.166
14.5	1.7	0.236
15	1.5	0.216
15	2	0.282
16.5	1	0.168
17.5	1.7	0.291
17.7	1.1	0.198
20	1.5	0.301
20	2	0.390
21.5	2.5	0.513
22	1.2	0.271
25	1.1	0.285
25	1.2	0.310
25	1.5	0.382
25	1.7	0.429
25	2	0.499
25	3	0.715
30	2	0.607
30	3	0.878
35	2	0.715
38	1.2	0.479
40	1.1	0.464
40	1.2	0.505
40	1.5	0.626
40	2	0.824
40	2.5	1.016
40	3	1.203
40	4	1.561
40	5	1.897
50	2	1.041
50	3	1.528
50	4	1.995
60	2	1.258
60	3	1.854
60	4	2.428
60	4	2.372
60	6	3.512
80	2	1.691
80	2.5	2.100
80	3.8	3.139
80	4	3.295
80	8	6.244
100	2.5	2.642
100	4	4.163

---

Square tubes (rounded)

---

Square bars

---

U-profiles

a (mm)	b (mm)	s (mm)	Weight (kg/m)
10	10	1	0.075
12	12	2	0.173
15	15	2	0.222
17	17	1	0.132
20	20	1.5	0.232
20	20	2	0.304
23	23	1.5	0.268
25	25	2	0.385
25	25	3	0.561
30	30	3	0.683
35	35	2	0.547
40	40	2	0.629
40	40	3	0.927
50	50	4	1.539
50	50	5	1.897

---

U-profiles (rounded)

---

L-profiles

a (mm)	s (mm)	Weight (kg/m)
10	1	0.051
10	1.2	0.061
15	1.2	0.094
15	1.5	0.116
15	2	0.152
15	3	0.220
16	1.2	0.100
20	1.2	0.126
20	1.5	0.157
20	2	0.206
20	3	0.301
25	1.2	0.159
25	2	0.260
25	2.5	0.322
25	2.7	0.346
25	3	0.382
30	1.1	0.175
30	1.2	0.191
30	1.5	0.238
30	2	0.314
30	3	0.463
30	4	0.607
35	2	0.369
35	4	0.715
40	1.5	0.319
40	2	0.423
40	3	0.626
40	4	0.824
40	5	1.016
44	4	0.911
50	2	0.531
50	3	0.789
50	4	1.041
50	5	1.287
50	10	2.439
60	3	0.951
60	6	1.854
70	8	2.862
80	4	1.691
80	6	2.504
80	8	3.295
100	6	3.154
100	10	5.148

---

L-profiles with varying lengths

a (mm)	b (mm)	s1 (mm)	s2 (mm)	Weight (kg/m)
10	54	4	4	0.650
15	8	1.5	1.5	0.087
15	10	1	1	0.064
15	9.5	1.5	1.5	0.093
15	35	2	2	0.260
20	10	2	2	0.152
20	15	3.5	1.5	0.209
22	13	2.7	2	0.217
22	14	2	2	0.184
25	10	2	2	0.179
25	14	2.5	2.5	0.247
25	14	2.7	2.7	0.266
25	14	3	1.5	0.248
25	15	2	2	0.206
25	15	3	3	0.301
25	20	3	3	0.341
26.5	18.5	1.2	1.2	0.142
28	22	2	2	0.260
30	10	1.2	1.2	0.126
30	20	1.1	1.1	0.146
30	20	2	2	0.260
30	20	3	3	0.382
35	20	2	2	0.287
36	30	5	10	1.165
40	10	2	2	0.260
40	15	2	2	0.287
40	30	2	2	0.369
40	30	3	3	0.545
40	20	1	1	0.159
40	20	1.2	1.2	0.191
40	20	2	2	0.314
40	20	3	3	0.463
40	20	5	5	0.745
40	25	2.5	2.5	0.423
40	25	4	4	0.661
45	20	2	2	0.334
45	25	2	2	0.369
50	15	3	3	0.505
50	18	2.5	4	0.507
50	18	3	4	0.569
50	20	0.9	0.9	0.168
50	20	2	2	0.369
50	30	2	2	0.423
50	30	3	3	0.626
50	30	5	5	1.016
50	31	5	5	1.030
55	50	3	3	0.829
60	20	1.2	1.2	0.256
60	20	1.5	1.5	0.319
60	20	2	2	0.423
60	30	2.5	2.5	0.593
60	30	3	3	0.707
60	30	4	4	0.932
60	40	2	2	0.532
60	40	2	2	0.531
60	40	3	3	0.789
60	40	4	4	1.041
60	40	5	5	1.282
60	40	6	6	1.528
60	40	8	8	1.995
60	55	6	6	1.772
70	20	2	2	0.477
70	30	2	2	0.531
70	40	2.5	2.5	0.730
70	50	3.3	3.3	1.046
75	50	2	2	0.667
80	20	1.2	1.2	0.321
80	30	6	6	1.691
80	40	2	2	0.640
80	40	3	3	0.951
80	40	5	5	1.558
80	50	5	5	1.694
80	60	4	4	1.474
90	40	3	3	1.033
95	44	4	4	1.463
100	50	3.5	3.5	1.392
100	50	5	5	1.965
100	50	10	10	3.794
104	44	4	4	1.561
110	60	4	4	1.799
120	36	12	12	4.683
120	80	6	6	3.154
125	75	2	2	1.073
130	50	4	4	1.913
159	44	4	4	2.157
168	44	4	4	2.255

---

L-profiles with varying lengths (rounded)

---

T-profiles

a (mm)	b (mm)	s1 (mm)	s (mm)	Weight (kg/m)
10	15	1.2	12	0.077
10.2	11.2	1.2	1.2	0.066
18	35	3	3	0.407
20	20	1.2	1.2	0.126
20	20	3	3	0.301
20	18	2	2	0.195
25	25	1.2	1.2	0.158
25	25	2	2	0.260
30	30	1.2	1.2	0.191
30	30	2	2	0.314
30	30	3	3	0.463
30	30	4	4	0.607
30	30	5	5	0.745
30	60	4	4	0.932
32.2	80	2.2	2.2	0.656
35	30	1.5	1.5	0.258
36	60	10	10	2.331
40	50	2	2	0.474
44	51	6	10	1.859
50	110	2	3	0.987
50	50	4	4	1.041
50	50	5	5	1.287
60	60	6	6	1.854
80	60	6	6	2.179
80	80	7	7	2.903

---

T-profiles (rounded)

---

Plates

a (mm)	b (mm)	Weight (kg/m)
5	5	0.068
6	6	0.098
12	12	0.390
15	15	0.610
16.2	16.2	0.711
20	20	1.084
22	22	1.311
23.7	23.7	1.522
25	25	1.694
26	26	1.832
26.5	26.5	1.898
28.5	28.5	2.201
29	29	2.279
30	30	2.439
32	32	2.775
35	35	3.319
36	36	3.512
40	40	4.336
45	45	5.488
50	50	6.775
70	70	13.274
90	90	21.942
6	4.5R	0.062
6.25	4.5R	0.064
9.5	4.5R	0.104
10	3	0.081
10	8	0.217
10.5	4.5R	0.116
12	3	0.092
12	3	0.098
12	10	0.323
13	8	0.282
13	12	0.423
13.6	4.15	0.152
14	5.8	0.218
15	2	0.081
15	2.5	0.102
15	3	0.122
15	5	0.203
15	6	0.244
15	8	0.325
15	10	0.407
15.5	4.5	0.177
15.8	4.9	0.210
16	3R	0.125
16	10	0.434
17	4.5R	0.196
18	4.2	0.195
18	8	0.390
18	20	0.976
18.7	4.3	0.218
19.5	4.5	0.238
19.5	4.5	0.238
20	2	0.108
20	3	0.163
20	3	0.157
20	4	0.217
20	5	0.271
20	6R	0.304
20	6	0.304
20	6	0.325
20	10	0.542
20	15	0.813
20.5	5.5	0.306
21	5.4	0.307
21.5	5.5	0.320
24.5	4.5	0.299
25	2	0.136
25	3	0.203
25	5	0.339
25	5R	0.338
25	6R	0.386
25	8	0.540
25	10	0.678
25	15	1.016
25	24	1.626
29.5	5	0.400
30	2	0.163
30	3	0.244
30	3.5R	0.278
30	4	0.325
30	5	0.407
30	5R	0.404
30	6R	0.467
30	6	0.488
30	7R	0.564
30	8	0.650
30	10	0.813
30	15	1.220
30	20	1.626
30	25	2.032
30	35	2.846
30.5	6.5	0.537
35	6	0.569
35	8	0.759
38	3	0.309
39	35	3.697
40	2	0.217
40	3	0.325
40	5	0.542
40	4	0.434
40	5R	0.537
40	6R	0.630
40	7	0.759
40	8	0.867
40	10	1.084
40	12	1.300
40	20	2.168
40	22	2.384
40	25	2.710
40	30	3.252
40	15	1.626
43	9	1.049
44	10	1.192
45	1.5	0.183
45	8	0.975
45	14	1.707
45	15	1.829
46	2	0.249
49	1.2	0.160
50	2.5	0.339
50	3	0.407
50	3R	0.401
50	4	0.542
50	5	0.678
50	6	0.813
50	6R	0.792
50	8	1.084
50	10	1.355
50	15	2.032
50	20	2.710
50	25	3.388
50	30	4.065
50	40	5.420
55	6R	0.873
55	40	5.960
60	4	0.651
60	5	0.813
60	6	0.976
60	8	1.301
60	8R	1.264
60	10	1.626
60	10	1.568
60	20	3.252
60	15	2.439
60	25	4.065
60	30	4.878
60	40	6.504
62.5	6R	0.995
65	6R	1.036
65	20	3.523
70	1.5	0.285
70	6R	1.117
70	8	1.518
70	10	1.897
70	20	3.794
70	30	5.691
73	10	1.976
75	3R	0.605
75	3.55R	0.714
75	6R	1.199
75	7R	1.394
75	15	3.049
80	2	0.434
80	3	0.651
80	4	0.867
80	5	1.084
80	6	1.301
80	6R	1.280
80	8	1.734
80	10	2.168
80	15	3.252
80	20	4.334
80	25	5.420
80	50	10.840
85	10.5	2.419
86	6	1.398
90	2	0.488
92	4.1	1.022
95	6R	1.524
100	2	0.542
100	3	0.813
100	3.55R	0.955
100	5	1.355
100	6	1.626
100	7R	1.868
100	8	2.168
100	10	2.710
100	10	2.652
100	12	3.252
100	15	4.065
100	20	5.420
100	20	5.187
110	5.25R	1.549
110	6	1.789
110	6R	1.768
120	5	1.626
120	10	3.252
120	10	3.194
120	15	4.878
122	30	9.890
125	6R	2.012
130	4R	1.400
130	6	2.114
130	7R	2.437
140	15	5.691
145	24	9.431
150	15	6.098
153	10	4.144
159.9	6.9R	2.962
160	6R	2.581
165	5	2.236
180	20	9.755
200	6R	3.231
200	10	5.420

---

Plates (rounded)

---

Plates (fully rounded)

---

Z-profiles

---

Z-profiles (rounded)

---

Rectangular tubes

a (mm)	b (mm)	s (mm)	Weight (kg/m)
15	10	1.5	0.179
20	10	2	0.282
20	12	1.2	0.192
21.5	9	1.5	0.224
24	22.3	1	0.240
24.5	23	2	0.472
25	10	1.8	0.306
25	15	3	0.553
25	17	1.2	0.258
25	20	2	0.444
29	18.6	1.1	0.270
30	10	2	0.390
30	15	1.15	0.266
30	20	1.5	0.382
30	20	2	0.499
30	25	2	0.553
34	16	1.5	0.382
34	21	1.2	0.342
35	10	1.7	0.383
35	30	2.25	0.737
40	20	1.2	0.375
40	20	2	0.607
40	20	3	0.878
40	25	1.2	0.407
40	25	1.8	0.599
40	30	1.5	0.545
40	30	2	0.715
40	30	2.5	0.881
40	30	3	1.041
44	18	1.2	0.385
50	19	2	0.705
50	20	3	1.041
50	25	3.5	1.057
50	25	3	1.122
50	25	2	0.770
50	25	1.5	0.585
50	30	1.3	0.545
50	30	2	0.823
50	30	2.5	1.016
50	30	3	1.203
50	30	4	1.561
50	40	0.9	0.430
50	40	1.2	0.569
50	40	1.5	0.707
57	28	4	1.669
60	20	1.5	0.626
60	20	2	0.824
60	30	2	0.932
60	40	2	1.041
60	40	2.5	1.287
60	40	3	1.528
60	40	4	1.995
63.3	28.3	1.4	0.672
64	35	3	1.512
70	28	1	0.520
75	32	1.2	0.680
75	32	2	1.117
75	50	2	1.312
80	20	2	1.041
80	40	1.5	0.951
80	40	2	1.257
80	40	3	1.854
80	50	2	1.366
80	50	3	2.016
80	50	4	2.645
80	50	3	2.016
80	60	4	2.862
90	50	4	2.862
95	50	1.6	1.230
95	50	2,0	1.528
100	18	1.5	0.935
100	18	2	1.236
100	40	1.5	1.114
100	40	2	1.474
100	40	3	2.179
100	50	2	1.583
100	50	3	2.342
100	50	4	3.079
100	60	4	3.295
100	76	2.5	2.317
105	12	1.7	1.047
110	50	2	1.691
120	60	1.7	1.627
120	60	2	1.908
94	90	2	1.951
50	90	1.7	1.259
121	100	2.5	2.927
126.5	50.5	4	3.664
127	51	5	4.553
150	50	2.2	2.332
150	30	2.2	2.094
200	50	2.2	2.928

---

Rectangular tubes (rounded)

---

Rectangular tubes with varying thicknesses (rounded)

---

H-profiles

---

C-profiles

---

Flat tubes

---

Polygonal Bars

---

Many more standard and custom profiles are available. Contact Us for more information.

---
